Specifications Type:Hand TIJ Operating System:Linux Dimension:242 X 120 X 125mm Weight:0.95 Kg CPU: Quad 1.4 GHz Interface: USB Battery:2600Mah, DC 16.8V Adapter:AC Input 100V to 240V,DC Output 16.8V / 2A Conditions :Temperature 5°C-45°C, Humidity 40%-60% Ink Type: Solvent Base/42ml, Water Base Ink Colors: Black, White, Red, Blue, Yellow, Green Features Language Support: English, Arabic, Chinese, Turkish Content: Numbers, Symbols, QRCode, BarCode, Date, Time, Counter Print Distance:2 To 5mm Print Resolution:600dpi Maximum Max Print Height:2 To 12.5mm

Memory: Store up to 3GB of templates on the printer memory Languages: English, Spanish, Portuguese, Turkish, Arabic, Farsi, French, German, Thai, Korean, Japanese, Russian, Italian, etc. any language can be customized. Print Content: Variable code, variable data, text, date, time, batch number, symbol, QR code, bar code, counter, GS1, logo etc Code:Code11, Code16k, Code39, Code 49, Code93, Code128, EAN8,EAN13, EAN14, UPCA, UPCE, INT25, ITF14, PDF417, Micro QR Code, Grid Matrix, Data Matrix, GS1 DataBar-14, GS1-EAN128, GS1-DM, GS1-QRcode, Others can be customized. Ink Type: Water-based, solvent-based, UV ink Ink Management: Automatically calculate the remaining ink and estimate print Font:Any fonts can be added Cartridge Type:12.7mm, 25.4mm Material: Aluminum Image Format:jpg, png, bmp, css, web, etc Operating System: jpg, png, bmp, css, web, etc Electrical Requirement:100 - 230 ACV, 5A, 50/60Hz, 1PH Variable Data Format: Csv, txt, xlsx, xls PC Software Format: MS EXCEL, MS Access, SQL2000, SQL2005, SQL2008 Printer Models RE 10.1 Print Height: 12.7 or 25.4mm (1 Head) RE 10.2 Print Height: 25.4 or 50.8mm (2 Head) Specifications Display:10-inch capacitive touch screen Electrical Requirement:100-230 ACV, 5A, 50/60Hz, 1PH Technology: Thermal Inkjet Technology 2.5 Operating Temperature: 5 - 45 °C and 90% air humidity, non-condensing Resolution:600 dpi, 300 dpi, 150 dpi Print Speed: Speed up to 120m/min at 300*600 dpi Density: Up to 3 levels of optical density Throw Distance:2-5mm recommended Working Environment: Temperature 0-45°C /Humidity 30-80%Rh

Operating System: Embedded Linux security operating system Display Screen: 10.1-inch colored touch screen, with a good human-computer interaction interface. Font : 5X6L, 7X6L, 7X10L, 9X8L, 9X11L, 11X11L, 12X12L, 16X16L, 24X24L, 32X32L,11X11B, 12X13B, 16X16B, 24X24B, 32X32B Communication Interface: Network interface, RS232, connection to enterprise EMS System (Various external equipment protocols can be added) Power Requirements: 220 - 240 ACV, 5A, 50/60Hz, 1PH Memory:256MB Machine Material:304 stainless steel Machine Dimension:296X296X490 (L*B*H*) Working Environment :Temperature 40-105ºF (10-40ºC) Humidity 10%-90%, Non Condensing Related Certification: CE, EAC, BIS Main Hardware: High integration of the industrial level of the new motherboard works fast and stable, which can be better to deal with the extremely harsh environment External Interface: Optical Sensor, Encoder, Signal Light Alarm, Output, Information Selection and Control,Reset Switch Support Language: Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc). Product Details Print Head Duct:3MTR / 6MTR Nozzle Specification:150um Printing Height :5mm to 128mm Printing Distance:3mm to 30mm Printing Lines:1 to 4 Lines Printing Speed:63 m/min Counter: Up to 20 Counter Ink Colour: Black, White. Blue, Green, Yellow, Invisible Ink Type: MEK-based, Water-based, Alcohol based, Acetyl, Pigment Printing Material: Carton, Plastic, Metal, Boarding, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging, Medical, Food Print Content: Text, Time, Date (Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database.

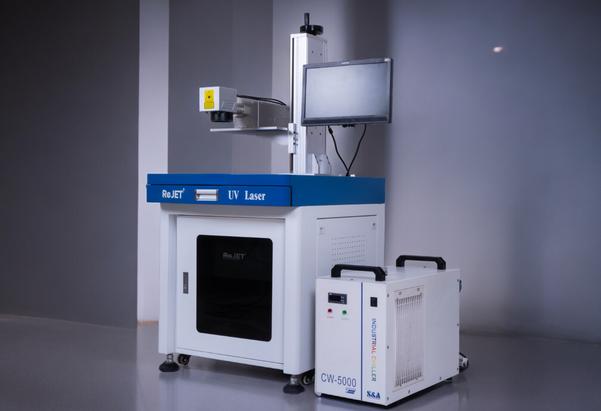

Laser Model: UV 3553/3555 Laser Type: UV Laser Laser Power:03W,05W Electrical Requirement:100-230 VAC, 5A, 50/60Hz, 1PH Temperature:40-105 °F (10-40°C) Humidity:10% to 90%, Non Condensing Cooling Method:AC Cooled Water Chiller Wave Length:355nm Depth of Engraving:75 Micron Laser Source: PT Laser Guide: In-Built Marking Speed :0 ~ 8000 mm/s Marking Area:110mm X 220mm Marking Format: Graphics, Logo, Text, Bar Code, QR Code, TTF Font, Automatic Date & Time, Variable Text, Real Time Clock, Sequential and Batch Numbering Software: EZ Cad Marking Software Language Support: English, Arabic

Laser Type: C02 Electrical Requirement:100-230 VAC, 5A, 50/60Hz, 1PH Operating Temperature :40-105 °F (10-40°C) Humidity:10% to 90%, Non Condensing Wave Length:9.3um, 10.6um Laser Source: Synred, Coherent, Davi Depth of Engraving:0.3mm Marking Format: Graphics, Logo, Text, Bar code, QR Code, TTF Font, Automatic Date & Time, Real time Clock, Sequential and Batch Numbering Language Ability: English, Arabic, German, Chinese Gross Power:300w Gross Weight:70Kg (154.3lbs)

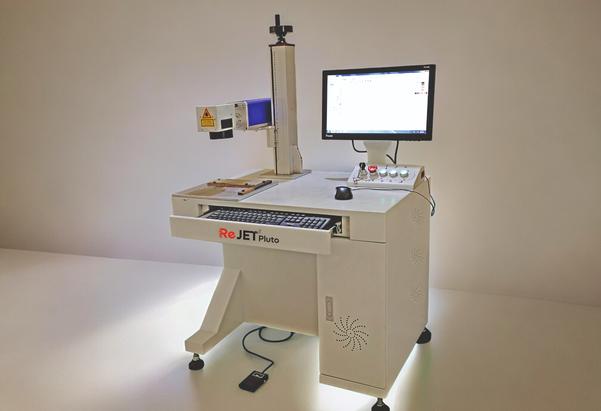

Laser Model: Pluto Laser Type: Desktop Fiber Laser Power:30W, 50W Electrical Requirement:100-230 VAC, 5A, 50/60Hz, 1PH Load:< 1KW Temperature :40-105 °F (10-40°C) Humidity:10% to 90%, Non Condensing Wave Length:1064nm Depth of Engraving:80 Micron Laser Source: Raycus, JPT, IPG Laser Guide: In-Built Red and Red Focal Marking Speed :0 ~ 8000 mm/s Marking Area:100mm X 300mm Marking Format: Logo, Text, Barcode, TTF Font, Automatic Date & Time, Realtime Clock, Sequential and Batch Numbering Language Support: English, Arabic

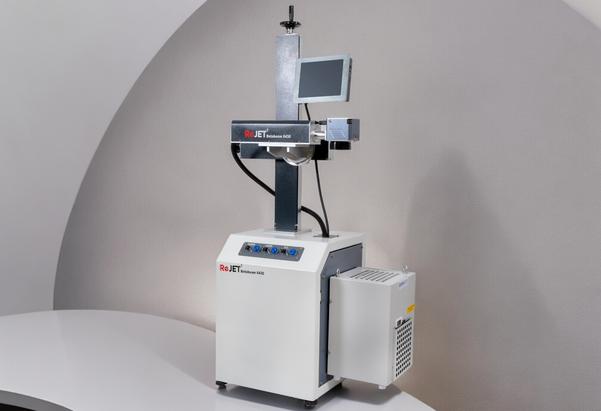

Laser Model: Betabeam 6430/6450 Laser Type: Multimode Fiber Laser Laser Power:30W, 50W Electrical Requirement:100-230 VAC, 5A, 50/60Hz, 1PH Load: < 1KW Temperature: 40-105°F (10-40°C) Humidity:10% to 90%, Non Condensing Wave Length:1064nm Depth of Engraving:80 Micron Laser Source: Raycus, JPT, IPG Laser Guide: In-Built Red and Red Focal Marking Speed :0 ~ 8000 mm/s Marking Area:100mm X 300mm Marking Format: Logo, Text, Barcode, TTf Font, Automatic Date & Time, Realtime Clock, Sequential and Batch Numbering Machine Speed:1m/min to 100 m/min(Depending on Application & Character Size) Language Support: English, Arabic

Specifications Operating System:Embedded Linux security operating system Display Screen:10.1 Inch colored touch screen, good human-computer interaction interface. Communication Interface:Network interface, RS232, connection to enterprise EMS System (Various external equipment protocols can be added) Power Requirements:220 - 240 ACV, 5A, 50/60Hz, 1PH Print Content:Text, Time, Date, Logo, Shift, SN, Dynamic QR Code, Dynamic Serial Data, Dynamic Database Memory:256M Machine Material:304 stainless steel Machine Dimension:337 X 316 X 561(L*B*H*) Working Environment :Temperature 40-105ºF (10-40ºC) Humidity 10%-90%, Non Condensing Related Certification:CE, EAC, BIS Main Hardware:U.S. TI AM3358 industrial-grade CPU, U.S. Xilinx Spant6 industrial-grade FPGA, ASIC chip External Interface:Optical Sensor, Encoder, Signal Light Alarm, Output, Information Selection and Control, Reset Switch Support Language :Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc).

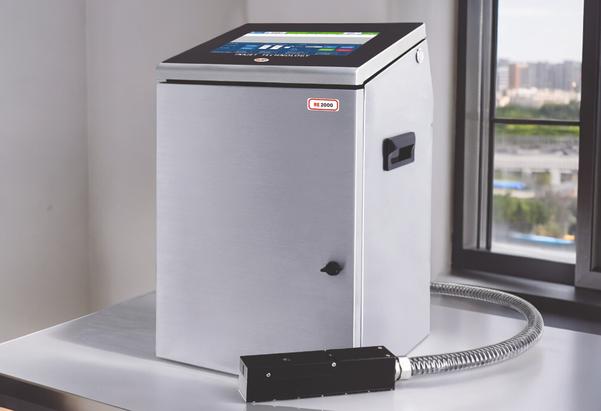

Specifications Operating System: Embedded Linux security operating system Display Screen:10.1-inch colour display, industrial touchscreen Communication Interface: Network port, USB, RS232 Protection Level: IP55 Power Parameters: Input 220-240V Rated Power:150W Memory:256M Machine Material:304 stainless steel Machine Specifications:447mmx242mmx650mm (L X W X H) Working Environment:Temperature0-45°C/Humidity 30-70%Rh Related Certification:RoHS, CE, BIS Net Weight:30Kg Main Hardware:American TIAM3358 industrial grade CPU, American Xilinx Spartan-6 industrial grade FPGA External Interface:Optical sensor, Encoder, Reverse and upside down control, Signal light alarm output, Serial number output control, External printing information selection. Support Language:Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc). Product Details Conduit Length:3MTR Nozzle Specification: 60um Printing Height:2mm to 14mm Printing Distance:1mm to 15mm Printing Lines: :1 to 5 Lines Printing Speed:450 m/min Counter: More than 20 Independent counters Ink Colour: Black, Red, Brown, Royal Blue, Sky Blue, Green Font :5x6L, 7x6L, 7x10L, 9x8L, 9×11L, 11x11L, 16x16L, 24×24L, 32×32L, 11x11B, 16×16B, 24×24B, 32×32B Printing Material: Carton, Plastic, Metal, Boarding, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging, Medical, Food Print Content: Text, Time, Date (Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database.
