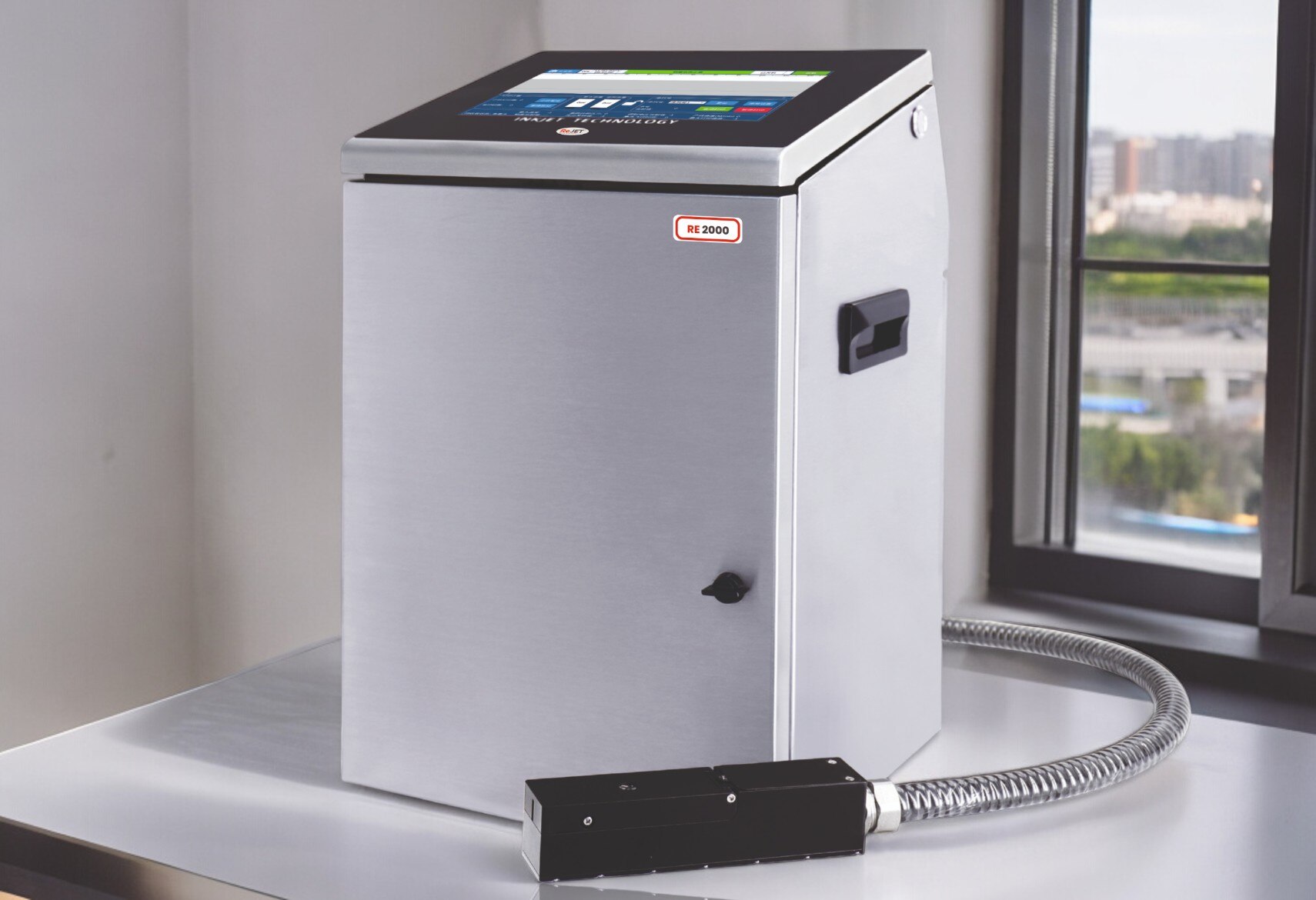

RE2000

Specifications

Operating System:Embedded Linux security operating system

Display Screen:10.1 Inch colored touch screen, good human-computer interaction interface.

Communication

Interface:Network interface, RS232, connection to enterprise EMS System (Various external equipment protocols can be added)

Power Requirements:220 - 240 ACV, 5A, 50/60Hz, 1PH

Print Content:Text, Time, Date, Logo, Shift, SN, Dynamic QR Code, Dynamic Serial Data, Dynamic Database

Memory:256M

Machine Material:304 stainless steel

Machine Dimension:337 X 316 X 561(L*B*H*)

Working Environment :Temperature 40-105ºF (10-40ºC) Humidity 10%-90%, Non Condensing

Related Certification:CE, EAC, BIS

Main Hardware:U.S. TI AM3358 industrial-grade CPU, U.S. Xilinx Spant6 industrial-grade FPGA, ASIC chip

External Interface:Optical Sensor, Encoder, Signal Light Alarm, Output, Information Selection and Control, Reset Switch

Support Language :Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc).
