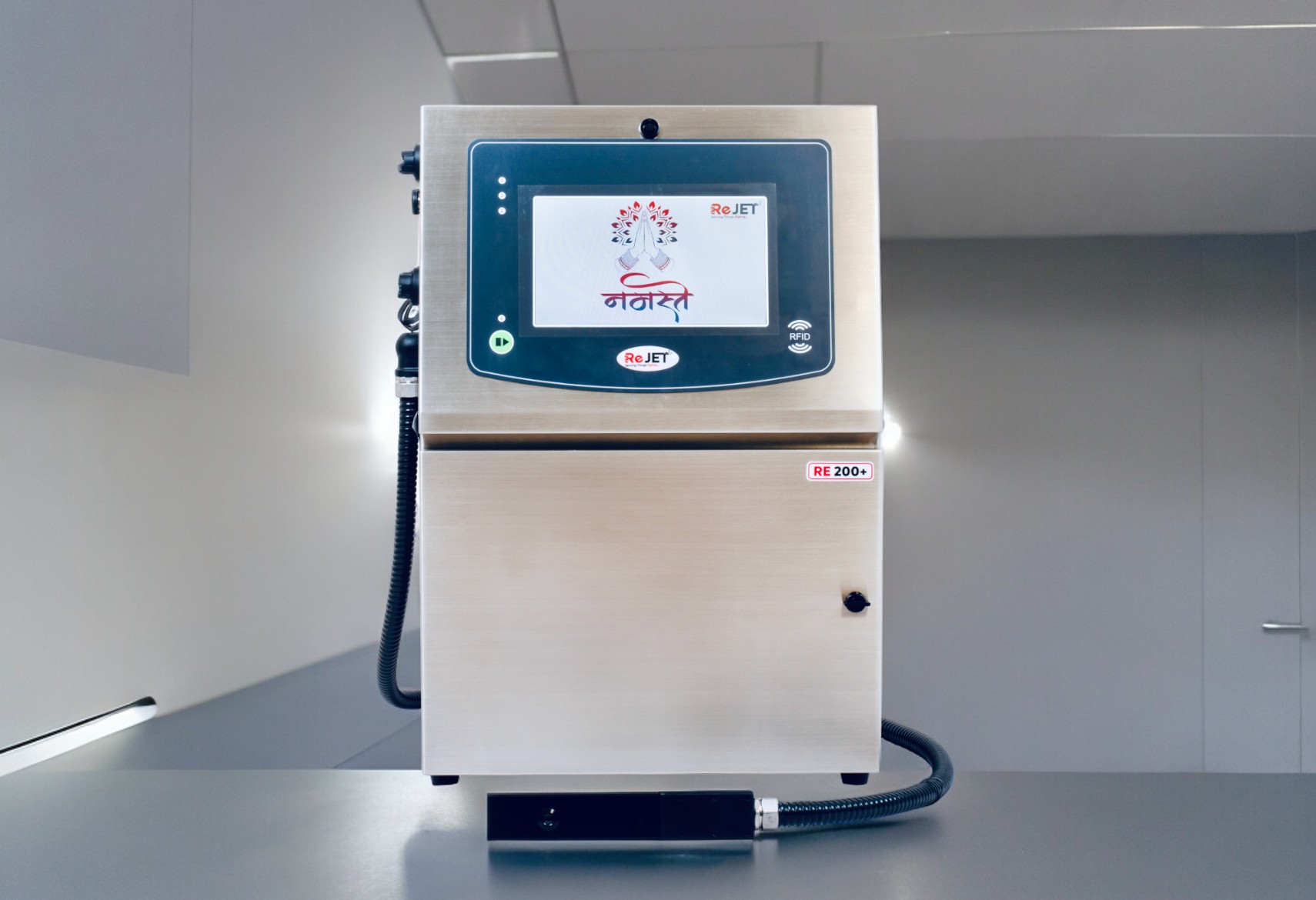

RE200 Plus

Specifications

Operating System: Embedded Linux security operating system

Display Screen:10.1-inch colour display, industrial touchscreen

Communication Interface: Network port, USB, RS232

Protection Level: IP55

Power Parameters: Input 220-240V

Rated Power:150W

Memory:256M

Machine Material:304 stainless steel

Machine Specifications:447mmx242mmx650mm (L X W X H)

Working Environment:Temperature0-45°C/Humidity 30-70%Rh

Related Certification:RoHS, CE, BIS

Net Weight:30Kg

Main Hardware:American TIAM3358 industrial grade CPU, American Xilinx Spartan-6 industrial grade FPGA

External Interface:Optical sensor, Encoder, Reverse and upside down control, Signal light alarm output, Serial number output control, External printing information selection.

Support Language:Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc).

Product Details

Conduit Length:3MTR

Nozzle Specification: 60um

Printing Height:2mm to 14mm

Printing Distance:1mm to 15mm

Printing Lines: :1 to 5 Lines

Printing Speed:450 m/min

Counter: More than 20 Independent counters

Ink Colour: Black, Red, Brown, Royal Blue, Sky Blue, Green

Font :5x6L, 7x6L, 7x10L, 9x8L, 9×11L, 11x11L, 16x16L, 24×24L, 32×32L, 11x11B, 16×16B, 24×24B, 32×32B

Printing Material: Carton, Plastic, Metal, Boarding, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging, Medical, Food

Print Content: Text, Time, Date (Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database.
