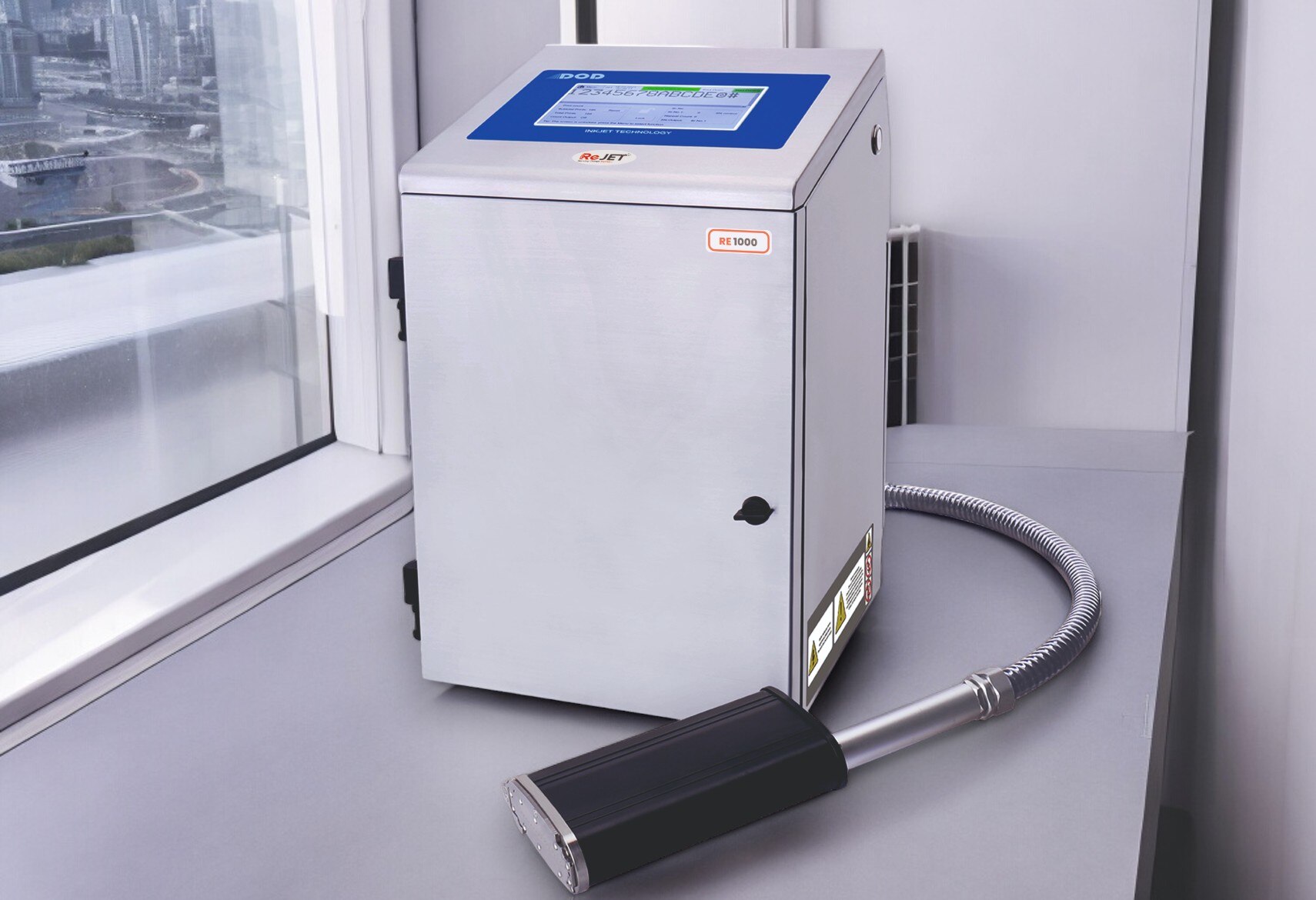

RE1000 DOD

Operating System: Embedded Linux security operating system

Display Screen: 10.1-inch colored touch screen, with a good human-computer interaction interface.

Font : 5X6L, 7X6L, 7X10L, 9X8L, 9X11L, 11X11L, 12X12L, 16X16L, 24X24L, 32X32L,11X11B, 12X13B, 16X16B, 24X24B, 32X32B

Communication Interface: Network interface, RS232, connection to enterprise EMS System (Various external equipment protocols can be added)

Power Requirements: 220 - 240 ACV, 5A, 50/60Hz, 1PH

Memory:256MB

Machine Material:304 stainless steel

Machine Dimension:296X296X490 (L*B*H*)

Working Environment :Temperature 40-105ºF (10-40ºC) Humidity 10%-90%, Non Condensing

Related Certification: CE, EAC, BIS

Main Hardware: High integration of the industrial level of the new motherboard works fast and stable, which can be better to deal with the extremely harsh environment

External Interface: Optical Sensor, Encoder, Signal Light Alarm, Output, Information Selection and Control,Reset Switch

Support Language: Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc).

Product Details

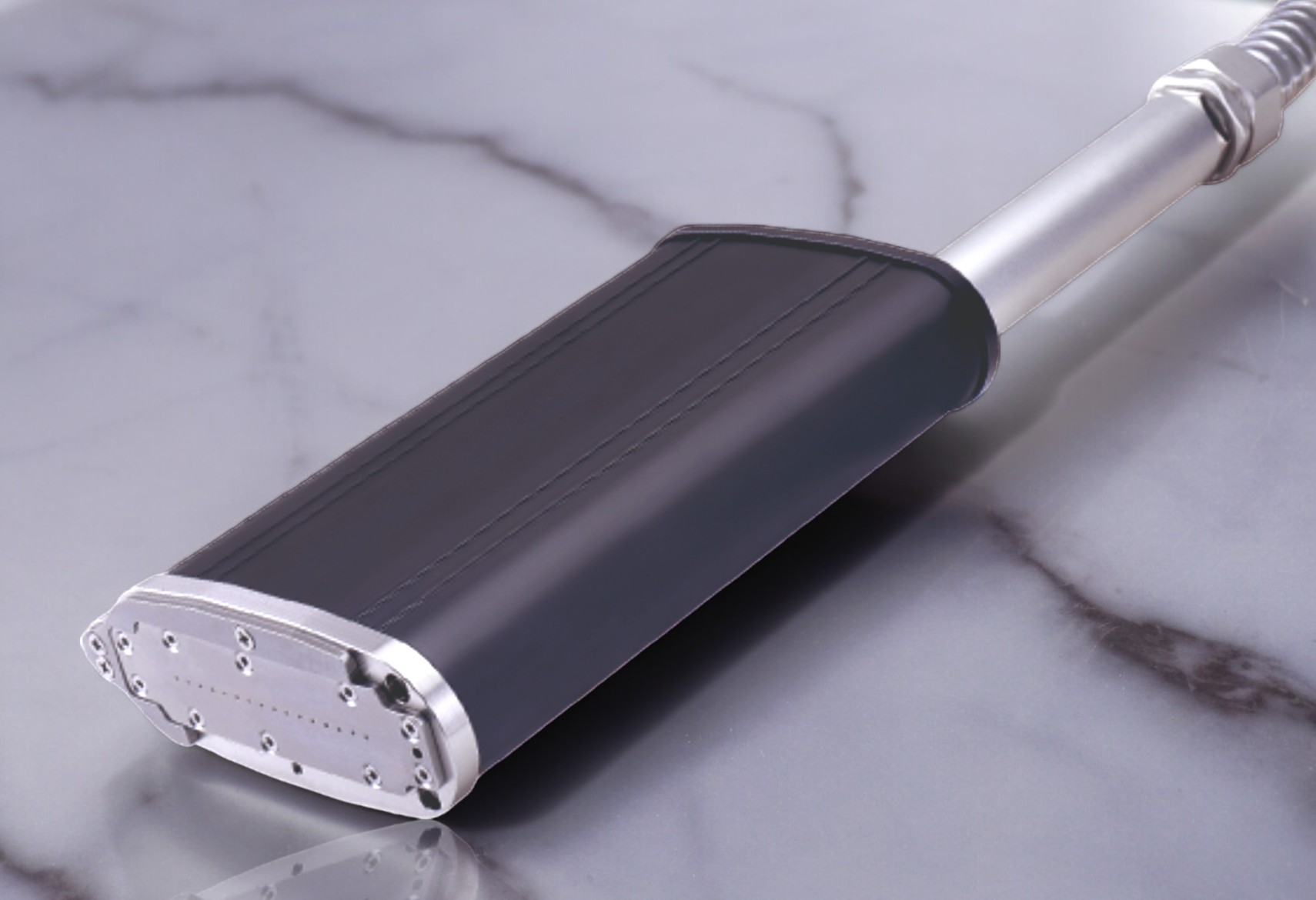

Print Head Duct:3MTR / 6MTR

Nozzle Specification:150um

Printing Height :5mm to 128mm

Printing Distance:3mm to 30mm

Printing Lines:1 to 4 Lines

Printing Speed:63 m/min

Counter: Up to 20 Counter

Ink Colour: Black, White. Blue, Green, Yellow, Invisible

Ink Type: MEK-based, Water-based, Alcohol based, Acetyl, Pigment

Printing Material: Carton, Plastic, Metal, Boarding, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging, Medical, Food

Print Content: Text, Time, Date (Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database.
